【Test items】

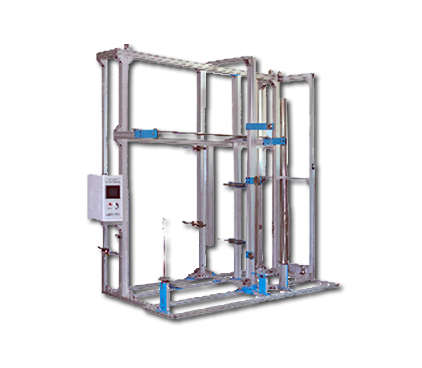

It is used to test the wind resistance of building external sunshade blinds and outdoor guide roller shutters. (The wind resistance performance test of outdoor guide roller shutter is optional)

【Applicable standards】

JG/T 239 External blinds and shutters-Resistance to wind loads-Method of testing

【Product features】

The control part adopts touch screen and PLC automatic control to automatically record the test piece displacement and test time.

The force applying mechanism adopts dual-axis cylinder and automatic loading. The weight is calculated according to the standard requirements and the size of the blinds and shutters.

【Technical parameters】

● Maximum specification of ring test piece: Width 3m, height 3m

● Maximum loading: 80kg (single cylinder loading)

● Measurement displacement 0 ～ 100mm; Accuracy: ± 0.5% F.S

● Dimensions: Length × Width × Height (mm): 3530 × 1600 × 3400

● Deadweight: 210kg
