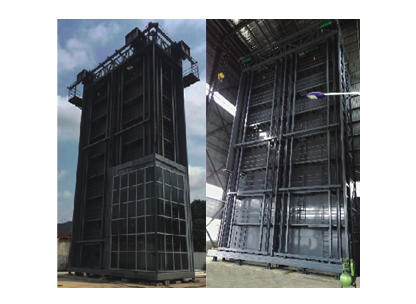

MW-K series building curtain wall physical performance testing equipment
Classification： Building door and window and curtain wall
Download
【Test items】
Test of airtightness, watertightness, wind pressure resistance and stories deformation performance of curtain wall.
【Applicable standards】
GB/T 15227 Test method of air permeability, water tightness, wind load resistance performance for curtain walls
GB/T 21086 Curtain wall for building
GB/T 18250 Graduations and test method for performance of deformation between stories of curtain wall
JGJ 102 Technical code for glass curtain wall engineering
JGJ 133 Technical Code for Metal and Stone Curtain Walls Engineering
For MW-K100-160 and above curtain walls, the following standards apply:
ASTM E283-04 Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen
ASTM E330-02 Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference
ASTM E331-00 Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference
AAMA 501.1-05 Standard Test Method for Water Penetration of Windows, Curtain Walls and Doors Using Dynamic Pressure
AAMA 501.4-00 Recommended Static Test Method For Evaluating Curtain Wall And Storefront Systems Subjected To Seismic And Wind Induced Interstory Drifts
ASTM E547-2000 Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Cyclic Static Air Pressure Difference
【Technical Parameters】
Model | MW-K40-60 | MW-K60-90 | MW-K100-160 |
Wind pressure test range | -8000~8000Pa, accuarcy: Level 0.5 | -10000~10000Pa, accuarcy: Level 0.5 | |
Air flow test range | 0-360m³/h, accuarcy: Level 3 | 0-1500m³/h, accuarcy: Level 3 | 0-3600m³/h, accuarcy: Level 3 |
Water flow test range | 4L/m²·min, accuracy: Level 2.5 | ||
Displacement test range | 0~50mm, 0~100mm, accuarcy: Level 0.05 | 0~50mm, 0~100mm, above 100mm can be customized, accuarcy: Level 0.05 | |
Equipment power | 50KW | 70KW | 120KW |
Static pressure box dimensions | (Maximum specimen width+2200)×4500×(Maximum specimen height+2500) | Customized | |
Power supply | AC 380V, 50HZ, three-phase five line | ||
Deadweight | 15 ton | 25 ton | 80 ton |
